T73T-4AA-P1N空气压力安全阀 美国omega

锁定安全阀的压缩空气系统。
T72T系列锁具的安全阀
新产品!

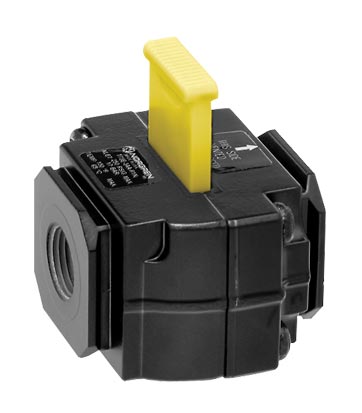

压缩空气锁定安全阀
T72T系列锁定安全阀：锁定安全阀的压缩空气系统。
T72T-2AA-P1N
In-Line or Modular Installation
Valves can be Locked in the Closed Position Only
Excelon? 3-Port/2-Position Lockout Valves Help Conform to OSHA Lockout Regulations in USA Market
The T72T Series Lockout Valves are designed for use as a single in-line unit or as part of Norgren&s Excelon? modular compressed air line preparation supply system. As a modular component this lockout valve can quickly be attached to air regulators filters oilers smooth start / exhaust valves and pipe adapters. With our Quickclamp? and Quickclamp? and wall bracket accessories a complete compressed air supply system can be assembled and mounted in minutes.
Lockout valves are used to protect people and equipment from accidental operation during maintainance repair or modifications. They are intended to help conform to OSHA regulations for lockout - tag out programs for control of pneumatic power supply.
SPECIFICATIONS
Fluid: Compressed air
Maximum Pressure: 17 bar (250 psig)
Operating temperature*: -34 to 65°C (-30 to 150°F)
CV Factor from IN to OUT Ports:
?" Ports: 4.0
3?8" Ports: 8.0
?" Ports: 8.1
?" Ports: 7.7
CV Factor from OUT to Exhaust Ports on 3-Port/2-Position Valves: 0.2
Exhaust Port Threads on T72T and T73T Models: 10-32
Exhaust Port Threads on T74T Models: 1?8 PTF with PTF main ports 1?8" ISO Rc with ISO G and ISO Rc main ports
Hole Diameter in Slide for Padlock 72 and 73: 8 mm (5?16")
Hole Diameter in Slide for Padlock: 7.5 mm (0.29")
MATERIALS
Body: Zinc
Slide: Acetal plastic
Elastomers: Nitrile
* Air supply must be dry enough to avoid ice formation at temperatures below 2°C (35°F).


产品型号 产品描述
3-port/2-position threaded exhaust port
T72T-2AA-P1N Lockout - Tag out safety valve ?" port
T72T-3AA-P1N Lockout - Tag out safety valve3?8" port
T73T-2AA-P1N Lockout - Tag out safety valve ?" port
T73T-3AA-P1N Lockout - Tag out safety valve3?8" port
T73T-4AA-P1N Lockout - Tag out safety valve ?" port
T74T-3AA-P1N Lockout - Tag out safety valve3?8" port
T74T-4AA-P1N Lockout - Tag out safety valve ?" port
